- Small dimensions, light weight and great looks

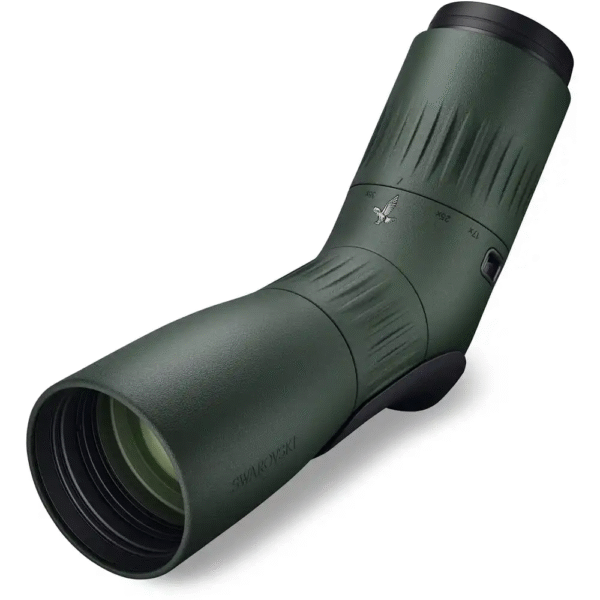

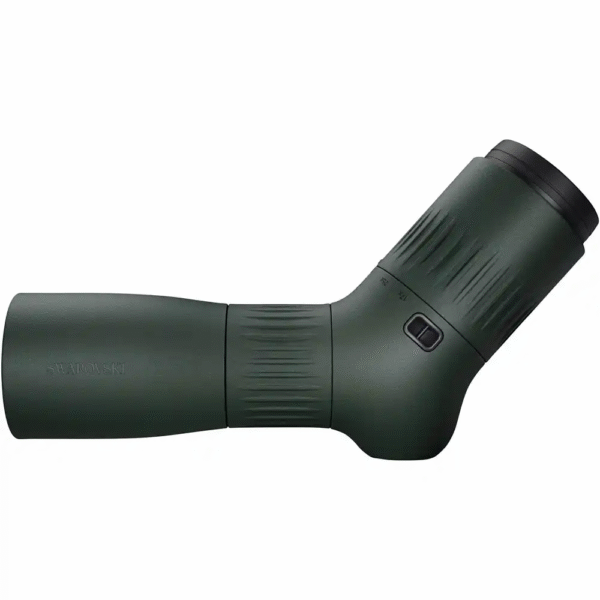

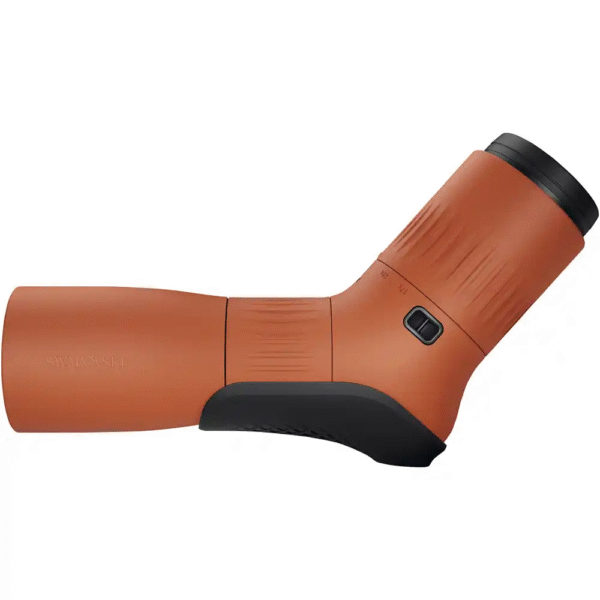

- slanted view
- ideally suited for digiscoping
- Light transmission 88%

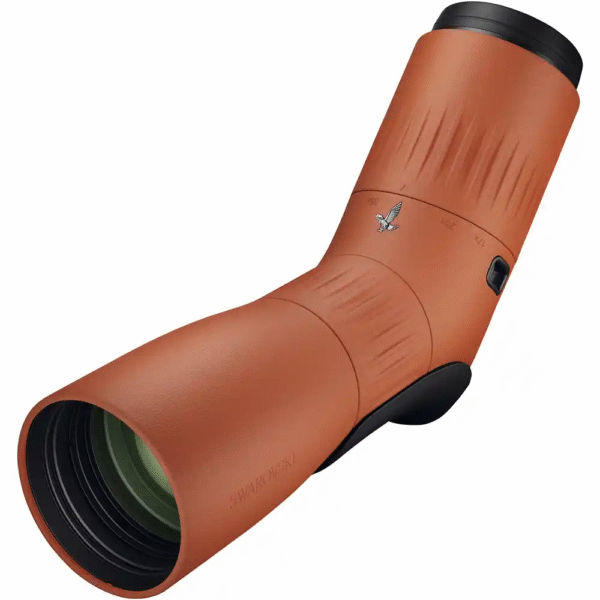

- Available in two colors

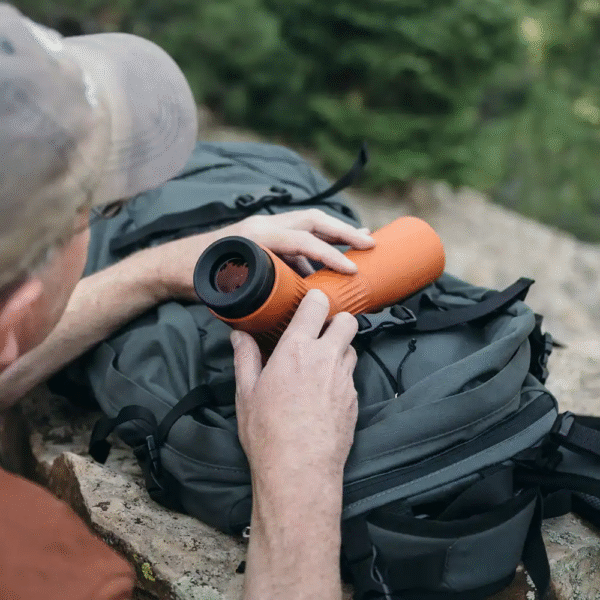

Small size, superb optics: Thanks to its length of just 258 mm, the ATC telescope with its angled eyepiece fits into any backpack. Weighing only 970 g, it’s the ideal choice for tours in rough terrain and remote areas. The cleverly designed half-shell base makes it easy to set up without a tripod and allows for unobstructed operation of the focus and zoom wheels at all times. When used with the VPA (available separately), the ATC is perfect for digiscoping. The carrying strap is the ideal finishing touch.
Big performance in a compact package
At 258 mm in length, the ATC is smaller than a sheet of A4 paper. Its light weight of less than one kilogram (970 g) makes it a suitable companion for demanding activities and extended travels. One of the biggest challenges for the product developers at the Tyrolean family business was to incorporate high optical performance into such a compact form. Stefan Hämmerle of SWAROVSKI OPTIK proudly explains: “Optical perfection packed into a small product requires a great deal of effort from our optical engineers and designers. They had to push the boundaries of physics to the absolute limit with the ATC once again. The result is magnificent.”
Easy to use

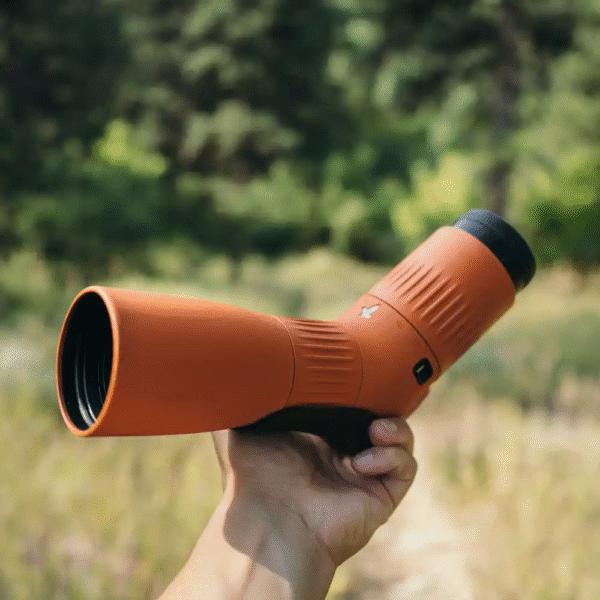

The ATC impresses not only with its outstanding optics in SWAROVISION quality. Another added benefit is its practical usability. A half-ball mount ensures stable support for the telescope even without a tripod and allows for unobstructed rotation of the focus and zoom wheels at all times. A carrying strap for the telescope is included.
Compatible with VPA

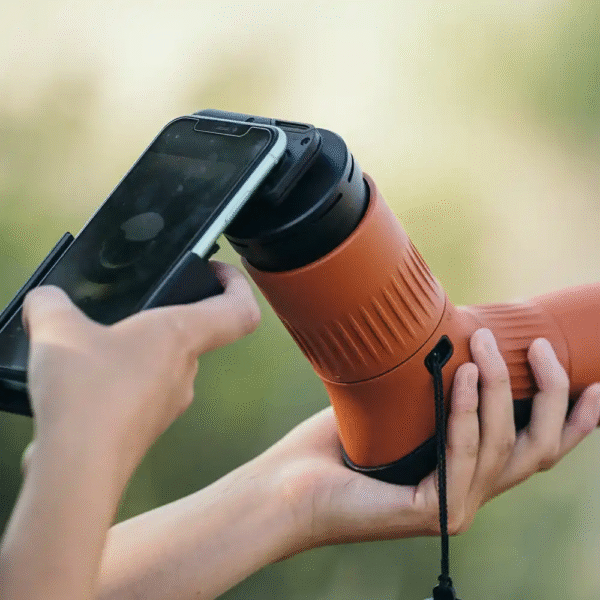

Like most SWAROVSKI OPTIK observation optics, the new compact telescope can be easily connected to a smartphone using the Variable Phone Adapter (VPA). This allows observations to be captured instantly.
Technical data:
- Magnification: 17-40x
- Lens diameter: 56 mm
- Exit pupil Ø: 3.4-1.4 mm
- Field of vision at 1,000 m: 62–34 m
- Field of vision: 3.52-1.93°
- Visual field on the ocular side: 57-71°
- Interpupillary distance: 20 mm
- Shortest adjustment distance: 3.4 m
- Diopter correction: >5 dpt.
- Light transmission: 88%
- Operating temperature: -25 °C to +55 °C
- Filter thread on lens side: M58x0.75
- Length: 258 mm
- Weight: 970 g
Scope of delivery
- Telescope ATC 17–40×56
- Eyepiece cover
- Lens cap
- carrying strap
- half-shell
